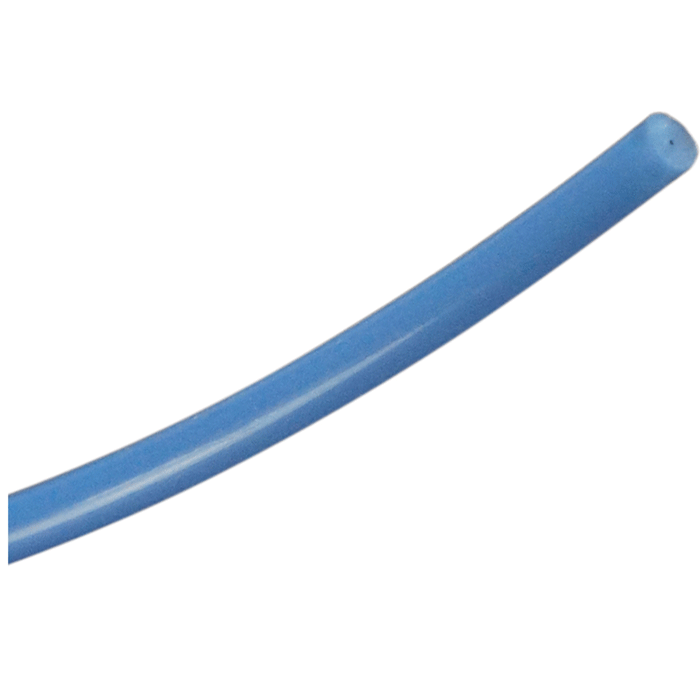

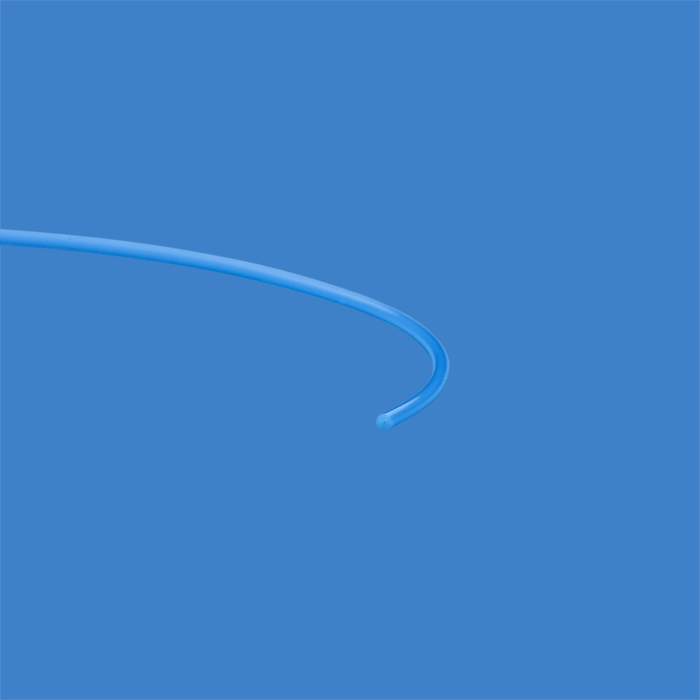

Tubing, PTFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, blue, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
47240-10-1M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering enhanced flow capacity and convenient color identification for organized system setups.
Manufactured from virgin PTFE resin, this tubing contains no additives or plasticizers (other than trace color coding particles), ensuring minimal contamination risk and compatibility with sensitive analytical workflows.
Precision Dimensions – Increased Flow Capacity
Inner Diameter (ID): 0.010" (0.25 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID compared to 0.007" tubing for higher flow rates and reduced restriction
Color‑Coded Blue Tubing – Improved Lab Organization
Blue color coding for easy line identification
Simplifies:
Multi‑solvent systems
Instrument setup
Maintenance and troubleshooting
✅ Ideal for organized lab environments and complex fluid routing
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 800 psi (55.2 bar)
✅ Supports stable solvent delivery in routine HPLC applications
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except minimal color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination in LC‑MS and trace‑level analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding analytical environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
May impact:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative materials when gas impermeability is required
Flexible & Durable Design
Flexible for easy routing and installation
Durable under repeated lab use
Allows visual flow verification despite color tint
✅ Supports efficient setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the length that fits your application:
1 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Solvent waste systems
Multi‑line solvent routing (color‑coded setups)
Low‑pressure fluid transfer
OEM instrument integration
Important Usage Notes
Not intended for high‑pressure pump head connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use appropriate fittings for secure installation
